Description

Pall FSI Felt Filter Bags

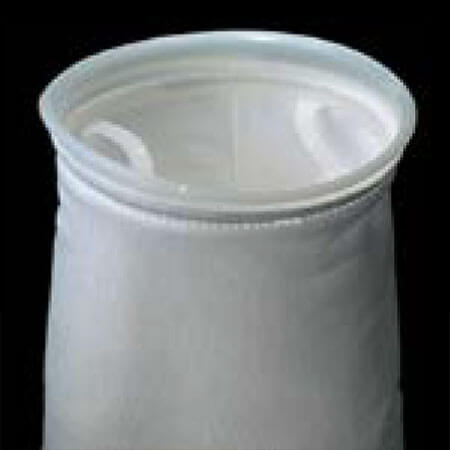

Standard Felt Filter Bags

FSI Standard Felt Filter Bags are the Answer

When it comes to felt filter bags, FSI has the answer, with our standard felt filter bags. Our years of experience give us an advantage over our competitors, and our felt filter bags show it. Our felt bags are designed to withstand higher solid loading, and are suitable for applications using vessel or open filtration systems. FSI’s “Comprehensive Manufacturing Control” philosophy insures that we will maintain our status as the industry leader in all phases of the filter business. Our integrated technology, control over our manufacturing and quality leads to consistent performance. With FSI filter bags, you can count on a quality product every time.

We start with the finest material possible. FSI makes its own fiber to produce the felt material used in our felt filter bags in-house, guaranteeing the highest quality. Our Extended Life filter bag provides superior filtration of all sized particles, as well as up to twice the dirt holding capacity of a standard filter bag.

Our no-bypass welded seams eliminate the possibility of fluid bypass through needle holes. We provide a variety of glazed and singed finishes to inhibit fiber migration. FSI also offers polyester inserted felts. These inserted felts include a reinforcing scrim needled inside the felt material, to provide added strength and durability, when a restrainer basket is not being used.

Features

• We offer a full line of felt materials and micron ratings.
• Conventional sewn bags or the PolyWeld® welded seam bags available.
• FSI PolyLoc® ring or other common bag rings available on most bags.
• Heavy Duty and Extended Life designs available to suit your filtration needs.

Specifications for Standard Felt Filter Bags

Available Materials

• PO = Felt, Polypropylene
• PE = Felt, Polyester
• N = Felt, Nylon
• HT = Felt, High Temperature
• TFE = Felt, Teflon

Maximum Operating Temperature

• Polypropylene: 200-220° F (93-104° C)
• Polyester: 275-325° F (135-162° C)
• Nylon: 275-300° F (135-149° C)
• High Temperature: 400-450° F (204-232° C)
• Teflon: 450-500° F (232-260° C)

Suggested Differential Pressure

• 35 PSIG maximum — dirty
• 10-15 PSIG optimum change out

Micron Rating

• PO = 1, 3, 5, 10, 25, 50, 100
• PE = 1, 3, 5, 10, 25, 50, 75, 100, 200
• N = 5, 10, 25, 50, 100
• HT = 5, 10, 25, 50, 100, 200
• TFE = 1, 5, 10, 25

Sizes

• #1: 7” x 16” (17.78 cm x 40.65 cm)
• #2: 7” x 32” (17.78 cm x 81.28 cm)
• #3: 4” x 8.25” (10.16 cm x 20.96 cm)
• #4: 4” x 14” (10.16 cm x 35.56 cm)
• #5: 6 7/8” x 34” (17.46 cm x 86.36 cm)
• #6: 6 7/8” x 16” 1/2” (17.46 cm x 41.91 cm)
• #7: 5 1/2” x 16” (13.97 cm x 40.64 cm)
• #8: 5 1/2” x 22” (13.97 cm x 55.88 cm)
• #9: 5 1/2” x 33” (13.97 cm x 83.82 cm)

Rings

• P = Polypropylene PolyLoc®
• PE = Polyester PolyLoc®
• N = Nylon PolyLoc®
• C = Cuno
• S = Snap ring metal
• SSS = Stainless steel snap ring
• CO = Commercial steel ring
• COP = Commercial plastic ring
• RP = Ronningen-Petter snap ring
• RPP = Ronningen-Petter plastic ring
• RPF = Ronningen-Petter flange

* Sizes 5 and 6 available with S ring only.
** Available in sizes 1 and 2, polypropylene and polyester non-inserted only.
